Column Trays & Tray Parts
New and replacement distillation trays, built to your column drawings or measured on site, plus loose tray valves, caps, clamps and manway fasteners for turnarounds.
Each tray acts as one stage of separation: good vapour–liquid contact on every tray means fewer trays, lower energy use and a more stable column. We fabricate complete tray sets (decks, downcomers, weirs, beams, clamps and manways) to the original drawings or to a revamp design.

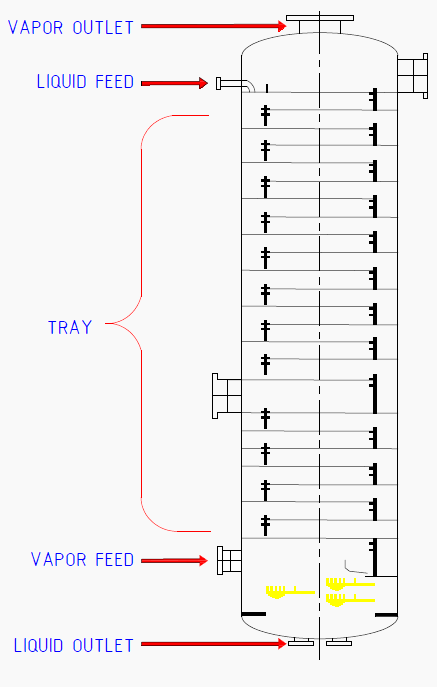

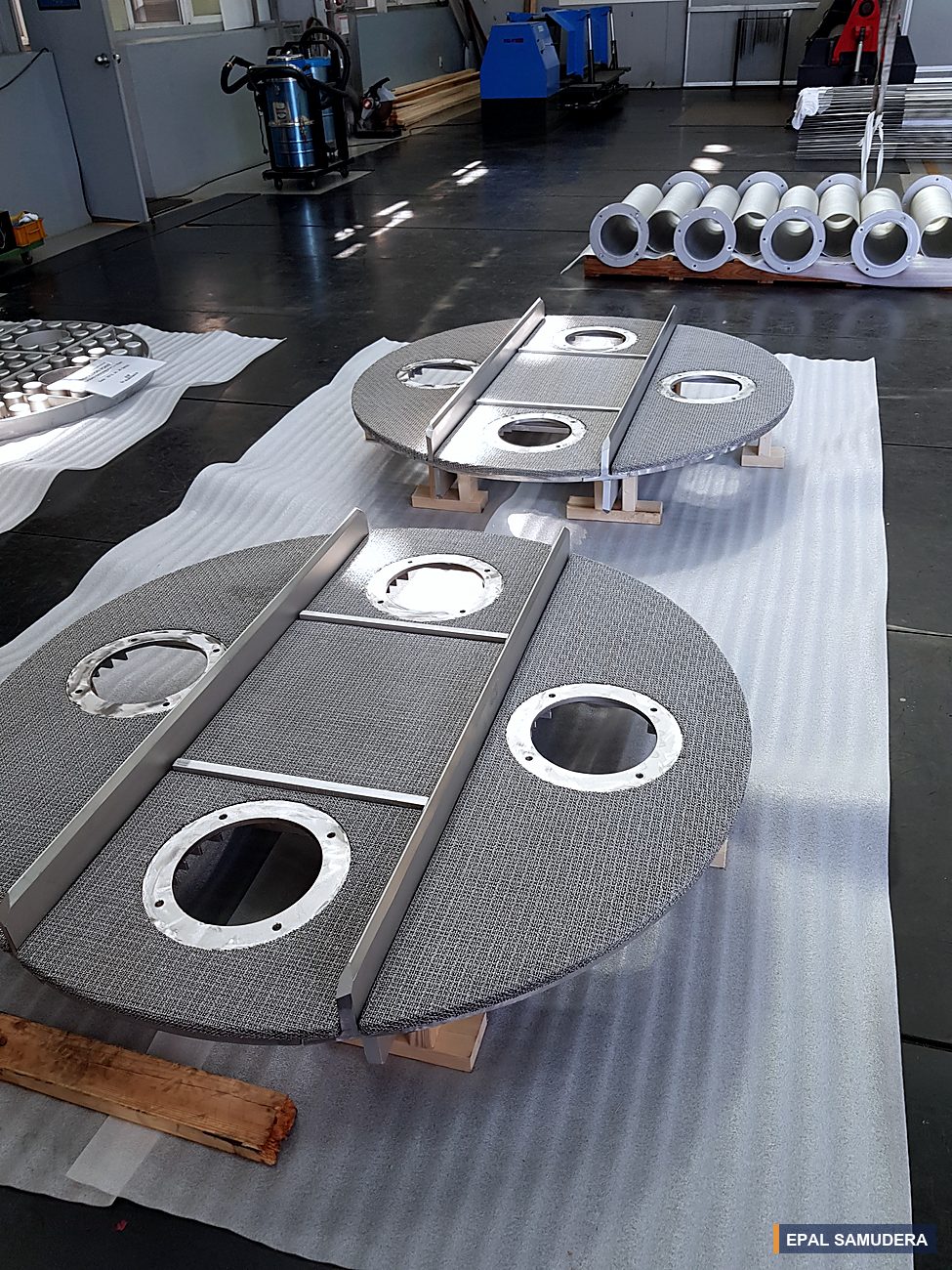

Large trays are trial-assembled on the shop floor before dispatch: a recent order of four dual-flow trays, 3.6 m diameter, was laid out and checked in our Senai workshop. For turnarounds we also supply valves, caps and fasteners in bulk.
- Sieve, valve (fixed and moving), bubble-cap and dual-flow trays
- Diameters to above 3.6 m, sectioned for manway entry
- Tray valves, bubble caps, filter caps and clamps
- Manway fastener assemblies in SS410 and Monel 400
- Built to client drawings or site measurement
- Trial assembly and dimensional check
Typical Oil & Gas Services
Design & Construction
| Materials | SS304/304L, SS316L, SS410S, carbon steel, Monel 400; others on request |
|---|---|
| Components | Decks, downcomers, weirs, support beams, clamps, manways, valves and caps |
| Inputs | Column and tray drawings, tray datasheets or site measurement |
| Records | Material certificates, PMI on alloy parts, dimensional report |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.
Tray Types
Sieve Trays
Simple perforated decks: low cost, good fouling resistance, but a narrower operating range.
Valve Trays
Fixed or moving valves over the deck holes: wide turndown and good efficiency. The most common choice for new columns.
Bubble-Cap Trays
Caps over risers hold liquid at low vapour rates: excellent turndown but the heaviest and most expensive type.
Dual-Flow Trays
No downcomers, vapour and liquid share the same holes: high capacity and fouling resistance.
