Demister Applications
Where mist eliminators are used, and what they do for product quality, emissions and equipment protection.
Demisters recover product, protect compressors, burners and catalysts from liquid carry-over, and keep stacks within emission limits. They are found in almost every gas–liquid separation step in a plant.
Typical results: lower product loss and higher purity in evaporators and columns, smaller knock-out drums for the same duty, and cleaner gas to compressors and fuel systems.
- Round, rectangular, segmented and two-layer pads
- Sizes from 300 mm to above 5.9 m diameter
- York 421-type and other original-make equivalents
- Support grids, tie wires, J-bolts and clamps supplied
- SS304/316L, duplex, Monel, Inconel, Hastelloy, PP, PTFE
- Site measurement and installation support
Typical Oil & Gas Services
Design & Construction
| Pad thickness | 100–150 mm standard; up to 300 mm for difficult duties |
|---|---|
| Pad density | 50–400 kg/m³ (DS, GP and HED grades, see table) |
| Wire diameter | 0.11–0.28 mm typical |
| Efficiency | > 99.5 % for droplets ≥ 3–5 µm (mesh); < 1 µm with fibre beds |
| Pressure drop | About 10–25 mm H₂O clean and dry for mesh pads |
| Sizing | Souders-Brown: Vmax = K × √((ρL − ρG) / ρG); K ≈ 0.10–0.12 m/s for standard mesh, lower for vacuum service |
| Materials | SS304/304L, 316/316L, 321, duplex, Monel 400, Nickel, Inconel, Hastelloy, titanium, PP, PTFE |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.
Typical Installations

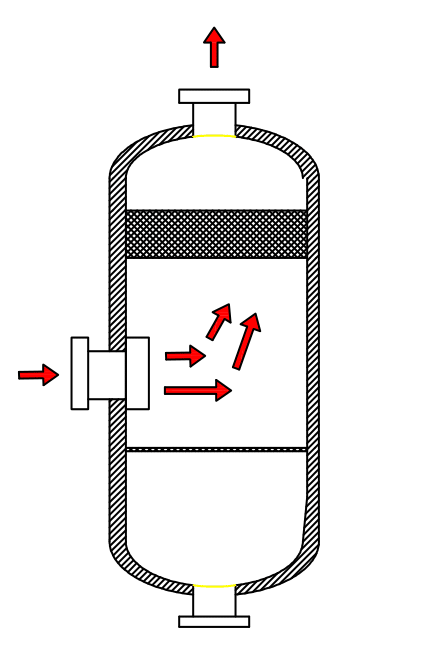

Vertical Separators & KO Drums
Horizontal or vertical pads above the inlet catch carry-over before the gas outlet.

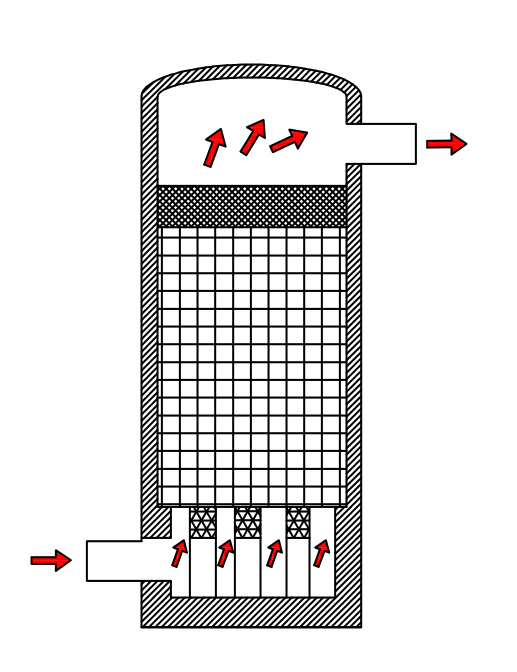

Packed Towers
A pad at the top of the column stops solvent or absorbent loss with the overhead gas.

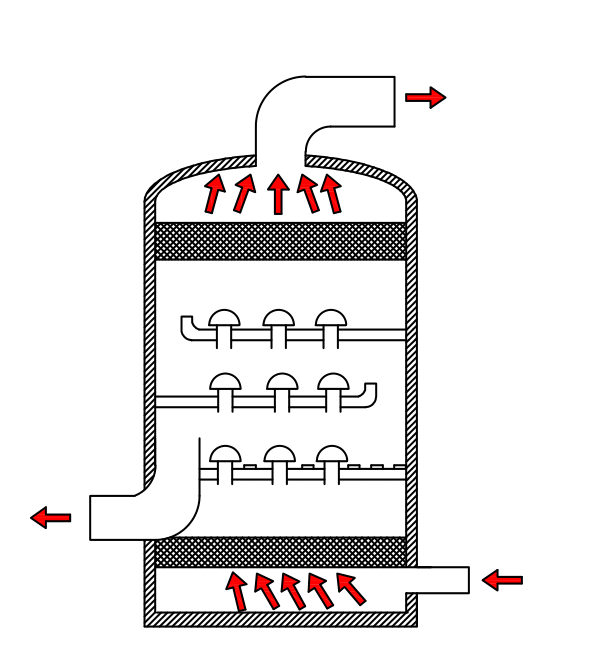

Fractionating Towers
Pads in the overhead and between sections improve product purity and reduce entrainment.

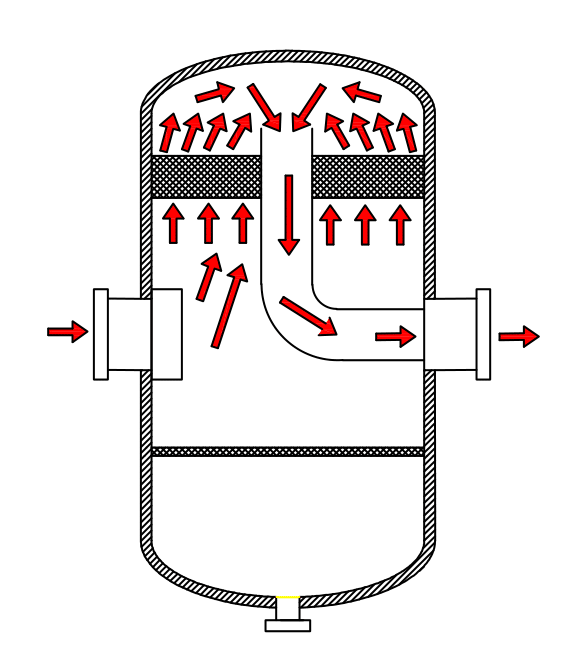

In-Line Gas Scrubbers
Compact scrubbers on gas lines protect compressors, meters and burners.
