LEAKPROOF Simplex Basket Strainers
Fabricated basket strainers with a large dirt-holding capacity and low pressure drop, for lines that can be stopped briefly to clean the basket.
The LEAKPROOF fabricated simplex basket strainer (LPFSB) protects pumps, meters, heat exchangers and valves on water, hydrocarbon and chemical services. A deep basket gives several times the pipe area, so the strainer runs longer between cleanings and holds a low pressure drop.
Bodies are designed to ASME Section VIII Div. 1 / ASME B31.1 with flanges to ASME B16.5. Quick-release covers, internal coatings, linings and special alloys are available for demanding services.
- Sizes 2" to 24" (larger on request)
- Class 150 and 300; higher ratings to order
- RF, FF, RTJ flanged or butt-weld ends
- Perforated basket with replaceable mesh liner
- Quick-release or bolted cover
- Internal coating or lining available
Typical Oil & Gas Services
Design & Construction
| Design code | ASME VIII Div. 1 and/or ASME B31.1; flanges ASME B16.5 |
|---|---|
| Standard design | 150 psig at 150 °F (10.3 bar at 65.5 °C); higher pressures to order |
| Body material | Carbon steel, SS304/304L, SS316/316L; duplex and other alloys on request |
| Basket | 3 mm perforation standard; 1/32" to 1/8" perforation; mesh liner #20 to #60 |
| Sour service | Materials to NACE MR0175 / ISO 15156 when specified |
| NDT | Radiography, dye penetrant, wet fluorescent MT, UT wall thickness |
| Testing | Hydrostatic test on every unit |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.
Dimensions
Fabricated simplex basket strainer, Class 150, typical dimensions (mm). Certified drawings are issued with every order.
| Size | A | B | C | D* | Drain (NPT) |
|---|---|---|---|---|---|
| 2" | 299 | 305 | 203 | 476 | 1/4" |
| 3" | 330 | 352 | 216 | 686 | 1/2" |
| 4" | 406 | 352 | 216 | 686 | 1/2" |
| 5" | 406 | 381 | 238 | 762 | 1/2" |
| 6" | 508 | 422 | 260 | 812 | 1/2" |
| 8" | 558 | 530 | 336 | 1042 | 3/4" |
| 10" | 660 | 654 | 431 | 1270 | 3/4" |
| 12" | 762 | 759 | 501 | 1473 | 3/4" |
* D = clearance needed to lift the basket out.

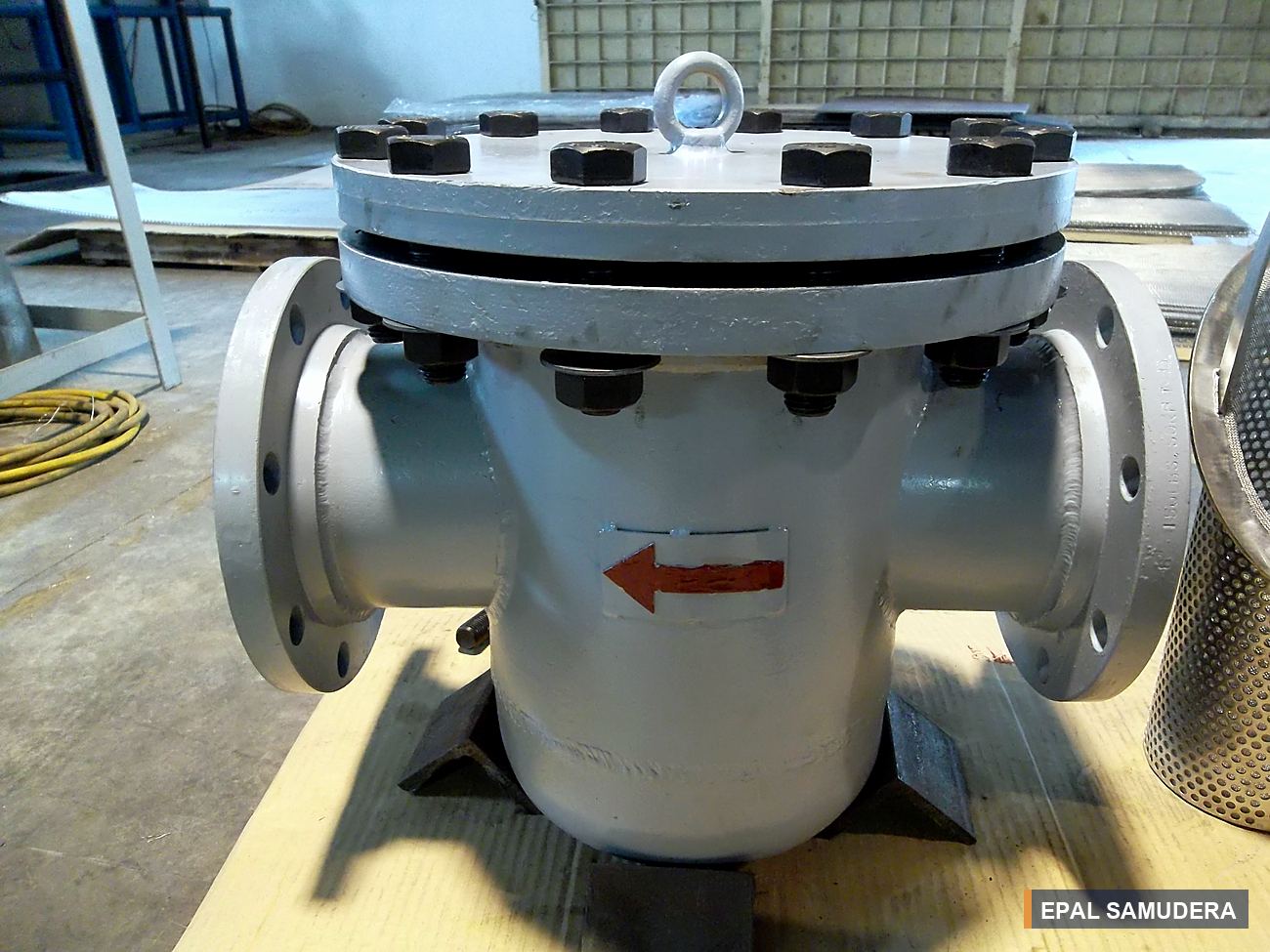

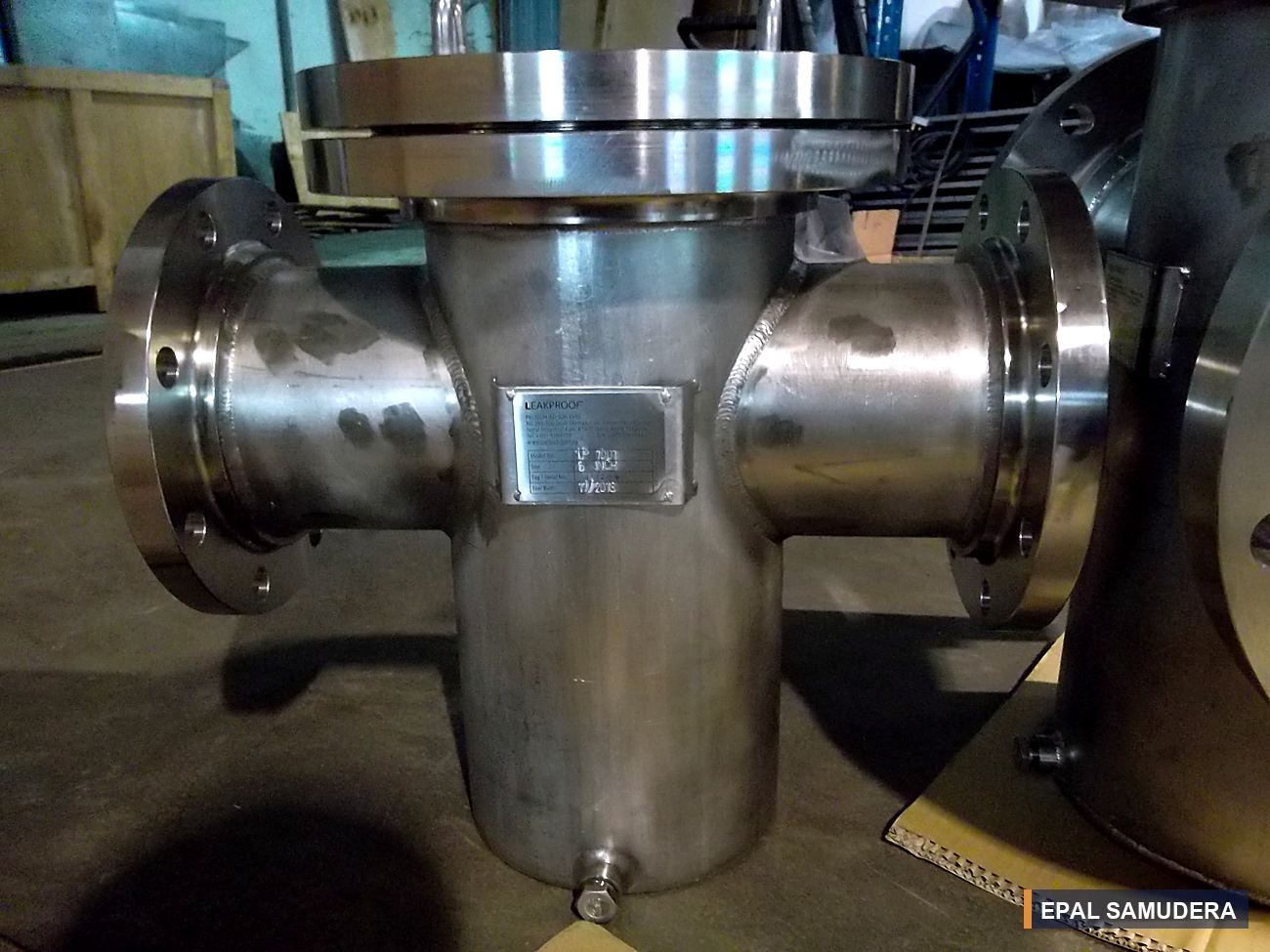

From Our Workshop
