Temporary Cone, Basket & Plate Strainers
Fitted between existing flanges to catch construction debris, weld spatter and scale during commissioning, start-up and the first weeks after a turnaround.
New and modified piping almost always holds debris. A temporary strainer, fitted between two flanges with no change to the line, protects pumps, compressors, turbines and instruments until the system is clean.
We make cone (TC), basket (TB) and flat plate (TP) styles from 3/4" to 24" and larger, sized for open area from 100 % to 300 % of the pipe bore. Stiffening rings and cross bracing stop the screen collapsing under high differential pressure.
- Cone, basket and plate styles
- 3/4" (20 mm) to 24" (600 mm) standard; larger on request
- Flange ratings Class 150 to 1500
- Open area 100–300 % (150 % standard)
- Mesh-lined options for fine straining
- Handle tab with tag for easy identification
Typical Oil & Gas Services
Design & Construction
| Styles | TC cone, TB basket, TP plate |
|---|---|
| Materials | SS304/316, Monel, Hastelloy and other alloys on request |
| Screen | 3 mm holes on 5 mm pitch standard; mesh lining on the upstream face for finer straining |
| Open area | 100 %, 150 % (standard), 200 % and up to 300 % of pipe cross-section |
| When ordering | Pipe size, style, pressure class, perforation / mesh (and flow direction if lined), material |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.
Dimensions
Temporary strainer ring dimensions (mm). Certified drawings are issued with every order.
| Size | OD Cl.150–300 | OD Cl.600 | OD Cl.900 | OD Cl.1500 | Cone L 150 % | Basket L 150 % |
|---|---|---|---|---|---|---|
| 3/4" | 54 | 64 | 67 | 67 | 43 | 29 |
| 1" | 64 | 70 | 76 | 76 | 64 | 43 |
| 1-1/2" | 83 | 92 | 95 | 95 | 86 | 57 |
| 2" | 102 | 108 | 140 | 140 | 114 | 76 |
| 3" | 133 | 146 | 165 | 171 | 159 | 108 |
| 4" | 171 | 191 | 203 | 206 | 200 | 136 |
| 6" | 219 | 263 | 286 | 279 | 330 | 216 |
| 8" | 276 | 318 | 356 | 349 | 406 | 272 |
| 10" | 337 | 397 | 432 | 432 | 508 | 356 |
| 12" | 406 | 454 | 495 | 517 | 610 | 432 |
| 16" | 511 | 555 | 572 | 638 | 787 | 533 |
| 20" | 597 | 676 | 695 | 753 | 991 | 686 |
| 24" | 708 | 784 | 835 | 899 | 1194 | 813 |
Lengths shown for 3 mm perforation on 5 mm centres at 150 % open area vs. Sch 40 pipe. Full table on request.

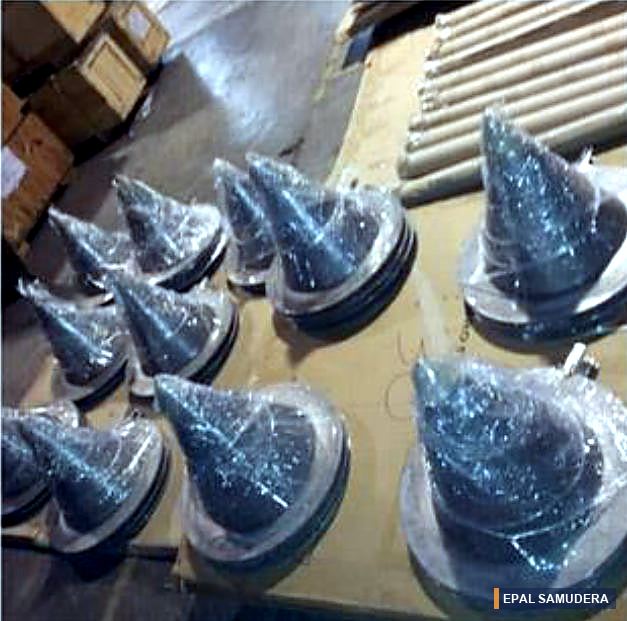

From Our Workshop
