Project References
43 projects delivered between 2013 and 2026 by Epal Samudera and its group manufacturing companies for oil and gas: refineries, LNG, offshore and onshore gas processing, petrochemical and fertilizer plants in Malaysia, Singapore and overseas.
Proven in the Plant, Delivery After Delivery
Every figure is a completed delivery from our records, not a quotation. From one replacement strainer to a full turnaround package, the same Senai team builds, ships and stands behind it.
PETRONASPETRONAS MLNGPETRONAS PGBPETRONAS PCGPETRONAS PRPC (RAPID)PETRONAS MRCABF Bintulu
ExxonMobil
Shell
Chevron
Hess
Petron
Petro Rabigh
Neste
Sumitomo Chemical
Asahi Kasei
Lotte UBE
Dialog
Fraser UniquipVessel Internals for Gas and Process Packages

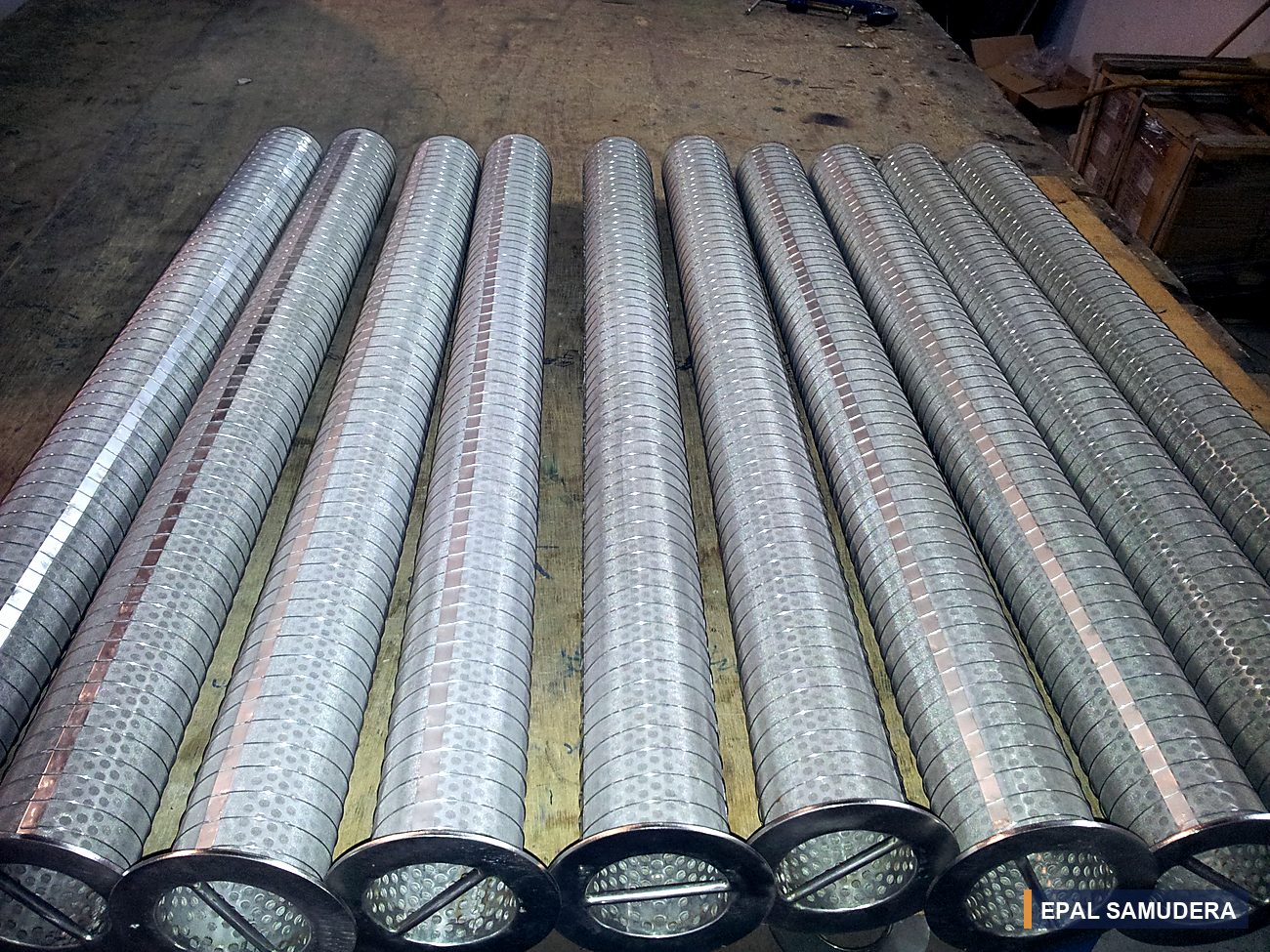

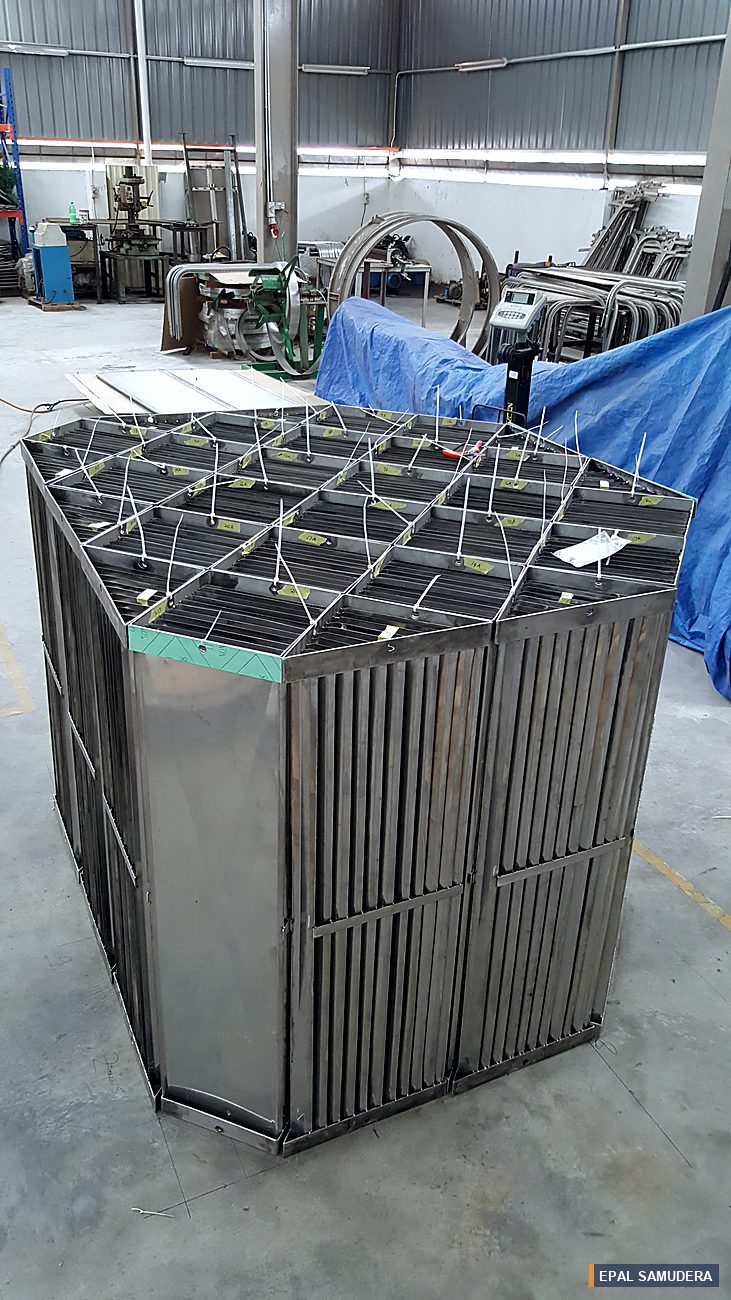

Fraser Uniquip designs and packages process equipment for oil, gas and petrochemical plants from Kuala Lumpur and Sydney. Since 2012 our Senai workshop has built the internals that go inside their vessels, to their drawings and inspection plans: pipe risers and riser tube sheets, packed-bed distributors and bed supports, inlet distributors, distributor and anti-surge baffles, mesh and vane modules, and the inducers for a 24-inch inline gas separator for PETRONAS PGB. Repeat orders over ten years, each shipped with material certificates and a data book.
Demister Pad Replacement, LNG Plant
SS304 knitted-mesh demister pad Ø2,100 mm × 100 mm in 7 sections with support grids, cleats and clamps: fabricated in 10 days and air-freighted to East Malaysia.
Knitted-Mesh Demister Pads
SS304 demister pads Ø1,500 mm × 150 mm, 5 sections, with support grids, studs and brackets.
Site Survey and Rectangular Demister
Site visit and measurement, then design and supply of a 1,300 × 1,700 × 100 mm SS304 pad in 4 sections with support grids. Delivered through a maintenance contractor.
Monel Demister Package for a Refinery Separator
Monel 400 mesh pads with SS316L grids: horizontal pads up to 2,027 × 1,727 × 305 mm plus a vertical Ø2,743 mm pad in 16 sections.
Replacement Demister Pads
SS316 knitted-mesh pads Ø324 mm × 75 mm with top and bottom grids, 3 sets.
Demister Pads for a New-Build Package
SS316 knitted-mesh pads Ø1,200 mm × 150 mm in 3 sections with grids, 3 sets.
Two-Layer Demisters, Large Diameter
Two-layer mesh demisters Ø3,048 mm and Ø3,960 mm, plus pads for four further vessels, with grids and binding finish.
Tray Valves and Manway Fasteners
200 SS410S tray valves and 256 manway fastener assemblies in SS410 and Monel 400 for a distillation column.
Wire-Mesh Screen Grids
SS304 wire-mesh screens for Ø2,286 mm grids in 3 sections, SS321 mesh rolls, bolting and fixings.
Reusable Diesel Filter Elements
16 reusable SS316 elements for a diesel product filter, re-meshing of Inconel basket elements and basket modification.
Random Packing
SS304 cascade mini-ring random packing for column service.
Demister Pads for Four Vessels
SS304 pads Ø650 to 1,500 mm with grids, bolting and guide plates, plus an additional Ø1,000 mm pad.
16-Inch Cone Strainers
New 16-inch SS316L cone strainers with #10 mesh lining for a refinery.
Coalescer Support Grid for a 3.6 m Reactor
Wedge wire support grid Ø3,550 mm, 0.25 mm slot, SS304, built in sections to pass through the reactor manway.
Large Demisters for Gas Processing Plant Vessels
SS316L knitted-mesh pads Ø3,910 mm × 150 mm (2 sets) and Ø1,060 mm for gas processing plant separators.
Ø5.9 m Separator Demister
SS316 knitted-mesh demister Ø5,944 mm × 152 mm for a refinery separator, supplied through a process licensor.
Knock-Out Tank Demisters
SS304 pads Ø2,200 mm, Ø950 mm (2 sets) and Ø295 mm for a synthetic rubber plant knock-out tank.
Duplex Temporary Cone Strainers, 20" and 24"
Duplex UNS S31803 temporary cone strainers 20" and 24" with #50 mesh for a petrochemical plant.
Wedge Wire Tee Screens
Repair of one and supply of three 10-inch SS316L tee screen elements, 0.25 mm slot.
Demister Pads with Site Installation
SS304 pads Ø1,218 mm and Ø861 mm with grids and fixings, plus engineer inspection, installation labour and commissioning on site.
Temporary Strainers for a Plant Conversion
80 stainless temporary strainers with 60/100 mesh, followed by 62 temporary cone strainers 3" to 10" for start-up.
Packed-Bed Distributors and Bed Supports, Repeat Orders
SS316L packed-bed distributors, bed supports and a 2-inch manifold built to the client’s drawings in 2015, 2016, 2018, 2019 and 2021, supplied with EN 10204 3.1 material certificates.
Catalyst Support Grids for Absorber Vessels
Support grids for two gas absorber vessels ID 4,000 mm and two condensate absorbers ID 2,100 mm for an offshore central processing platform.
Wedge Wire Tee Screens
10-inch SS316L wedge wire tee screen elements for an integrated refinery and petrochemical complex.
Monel Separator Demisters
Monel demister pads Ø2,656 mm × 120 mm, 2 sets, for a fertilizer plant separator.
Scrubber and Absorber Internals

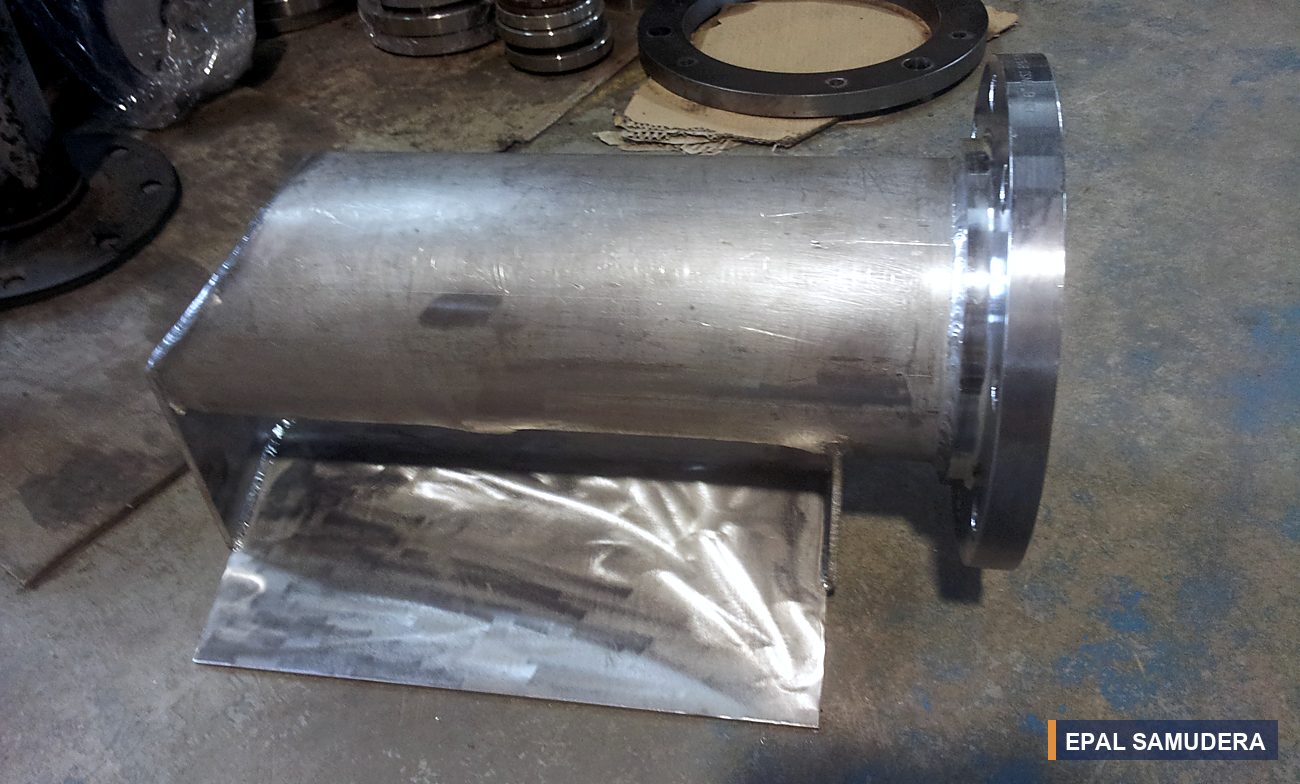

SS316L pipe risers, riser tube sheets and inlet distributors for scrubbers and an absorber, with installation tools.
DN600 Basket Strainers for Pump Refurbishment
SS304 basket strainers DN600 with DN400 / DN300 Class 150 connections and #150 mesh baskets for a petroleum storage terminal.
Site Survey and Knock-Out Drum Demisters
Site measurement and inspection by our engineers, then SS304L pads Ø1,800 mm (2 sets) and 686 × 686 mm with support grids.
Basket Strainer Elements, 8 Units
4" and 14" SS316 internal basket elements for a petrochemical complex project.
Super Duplex Demister for a Hydrogenation Drum
Super duplex UNS S32750 demister Ø3,000 mm × 300 mm for a vapour-liquid separation drum, supplied through a Malaysian EPC contractor.
Gas Dehydration Package Internals
SS316L packed-bed distributors up to Ø2,180 mm, distributor and anti-surge baffles, a sandwash assembly, 19 pipe riser sets and a scrubber inlet distributor.
Inline Gas Separator Inducers
SS316L first- and second-stage inducers for a 24-inch inline gas separator, built to the client’s drawings; repeat order in 2018.
Demister Package for 14 Vessels
SS304L knitted-mesh demisters for 14 vessels, including a Ø3,048 mm pad in 16 sections and two-layer designs.
Refinery Demister Package, 11 Pads
Eleven demister pads in SS304, SS316 and Monel, round and rectangular up to Ø2,743 mm and 2,027 × 1,727 × 305 mm.
Bucket Strainers for a Refinery
12-inch SS304 bucket strainers with #40 mesh lining for a refinery in Singapore.
Ammonia Separator Demister, Plant Revamp
SS304L demister Ø1,500 mm × 150 mm for an ammonia separator during an ammonia and urea plant revamp.
Dual-Flow Trays, 3.6 m Column
Fabrication of new SS304 dual-flow trays, plate Ø3,598 mm, 4 sets, to the client's drawings. Delivered through an engineering contractor.
Liquid Distributors and Support Grids
SS316L internals for two packed columns, ID 3,000 mm and 2,400 mm: liquid distributors, locating grids and packing supports.
Demister Pads for a Production Vessel
SS316L pads Ø1,870 mm and Ø1,880 mm × 100 mm for an oil & gas production facility in East Malaysia.
Column Caps for a Gas Plant Turnaround
2,500 filter caps and 3,000 bubble caps for a column, supplied for a gas processing turnaround.
Absorber Support Grids
Internal support grids for gas absorber vessels ID 2,480 mm, supplied through a process licensor.
Knitted-Mesh Demister Pads for a Refinery
Six demister pads from Ø400 mm to Ø2,400 mm (up to 10 sections each), 0.274 mm knitted crimped mesh at 144 kg/m³ with support grids; supplied through a local maintenance contractor in Cilacap.
SS316L Demister Pads for an LNG Plant
SS316L knitted-mesh demister pads Ø790 mm × 150 mm and Ø1,182 mm × 300 mm with stainless support grids, built to the plant datasheet; supplied through an engineering partner.
Built in Senai. Delivered Nationwide. Installed in Your Plant.
One team takes your internals from steel plate to a running column: no middlemen, no hand-offs, one document package.
01Built in Senai
Engineered and fabricated in our JKKP-licensed Johor workshop, trial-assembled on the shop floor and inspected to your ITP before it leaves.
02Delivered Across Malaysia
Crated and sectioned for your manway, delivered by road across the Peninsula and by sea or air to Sabah, Sarawak and Singapore.
03Installed & Serviced on Site
Our crew dismantles the old internals, installs the new ones and hands the column back on schedule, then stays on call for service.
