Strainer Baskets & Filter Elements
Replacement baskets, screens and elements made to fit your existing strainers and filters, whoever made them, plus a remeshing and repair service for worn elements.

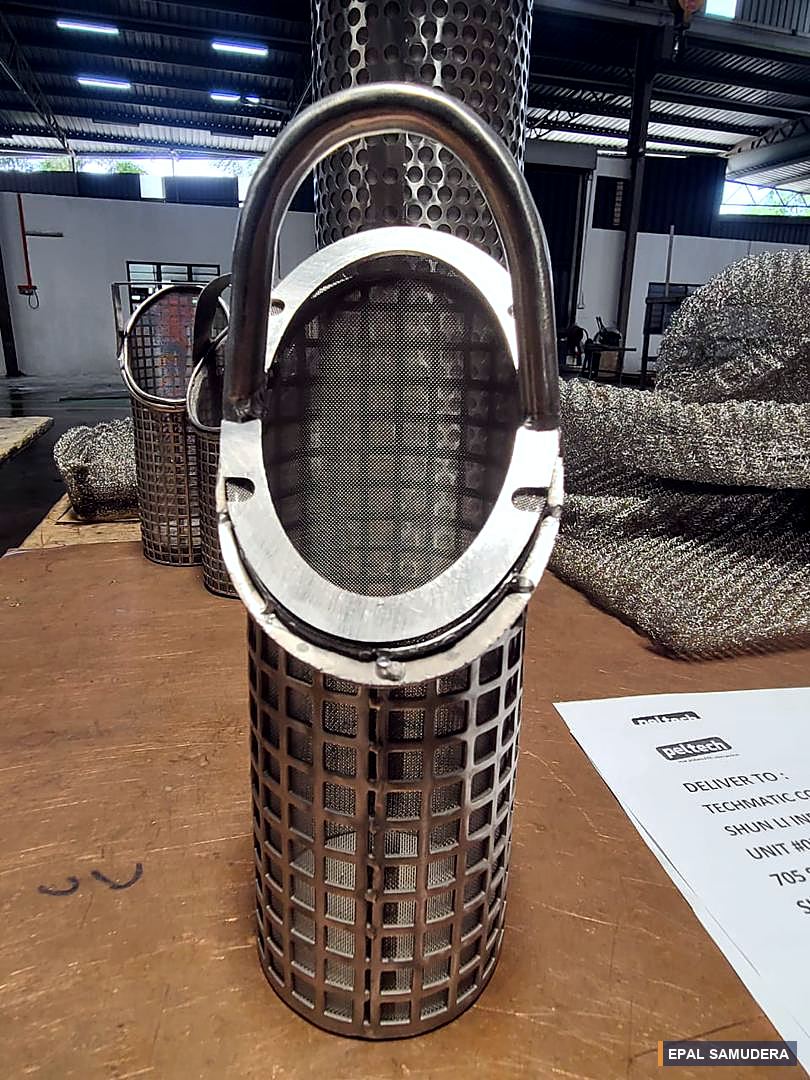

Often it is the basket that fails, not the strainer body. We measure or reverse-engineer the existing element, then make it in perforated plate, wire mesh, mesh-lined perforated plate, expanded metal or wedge wire, with the frames and handles the original had.
For worn elements, our remeshing service replaces the screen and repairs frames, with PMI and mesh measurement records when alloy materials are involved.
- Made to drawing, sample or site measurement
- Round, rectangular, conical, nested, hinged-cover and tray styles
- Perforated, mesh, mesh-lined, expanded metal or wedge wire
- Sea chest, tee-strainer and foot-valve screens
- Remeshing and repair of existing elements
- Inconel, Monel and duplex options for corrosive services
Typical Oil & Gas Services
Design & Construction
| Materials | SS304/316L standard; duplex, Monel 400, Inconel and others on request |
|---|---|
| Screen media | Perforated plate, woven wire mesh, Dutch weave, sintered mesh, wedge wire |
| Frames | Round bar, flat bar or rolled rings; welded or riveted construction |
| Records | Mesh count / aperture check, PMI on alloy parts, dimensional report |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.
From Our Workshop
Related Products
LEAKPROOF Simplex Basket Strainers
High-capacity basket strainers, 2" to 24", Class 150 / 300, for pump and equipment protection.
View Product →
Wedge Wire Screens & Vessel Internals
Profile-wire screens, support grids, laterals and tee screens with slots from 0.10 mm, for vessels and reactors.
View Product →
Sintered Mesh Filters
Multi-layer sintered wire mesh elements, 1–200 µm, strong, cleanable and fit for high pressure and temperature.
View Product →Send Us Your Datasheet or Line List
Tell us the service, size, rating and materials. We reply with a technical proposal, drawing and lead time, usually within two working days.
Call +607 598 5796 / 5797 · [email protected]
