Sintered Mesh Filters
Several layers of woven wire mesh sintered into one rigid filter medium: an exact micron rating, high strength and elements that can be cleaned and used again.
Sintered mesh is used where single-layer mesh is too weak or too coarse: fine filtration under high differential pressure, hot service, gas filtration and back-washable candles.

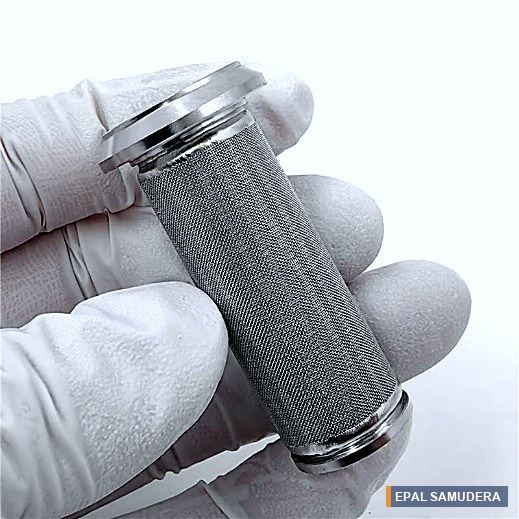

A typical 5-layer construction combines a protective layer, the fine control layer and coarse support layers. We form it into cartridges, candles, discs, cones and baskets that fit existing housings.
- Filtration ratings about 1 to 200 µm
- 3-layer, 5-layer and custom laminates
- High pressure and temperature capability
- Back-washable, ultrasonic or solvent cleanable
- Welded construction, no binders
- Made to fit existing housings
Typical Oil & Gas Services
Design & Construction
| Materials | SS304/304L, SS316/316L, SS316Ti, Inconel, Hastelloy, nickel |
|---|---|
| Rating | Approximately 1–200 µm depending on laminate |
| Forms | Cartridges, candles, discs, cones, pleated elements, baskets, strainer elements |
| End fittings | Flanged, threaded, O-ring spigot or to sample |
Documents Supplied
- Material test certificates to EN 10204 3.1
- Positive material identification (PMI) on alloy parts
- Hydrostatic test certificate (pressure-retaining items)
- Dimensional and visual inspection report
- NDT reports when specified: RT, UT, PT, MT
- Inspection & test plan (ITP) for client witness points
- Painting / surface preparation report and nameplate data
- JKKP documentation for pressure vessels and tanks
Documentation is prepared to your purchase order and ITP. Third-party inspection welcome.

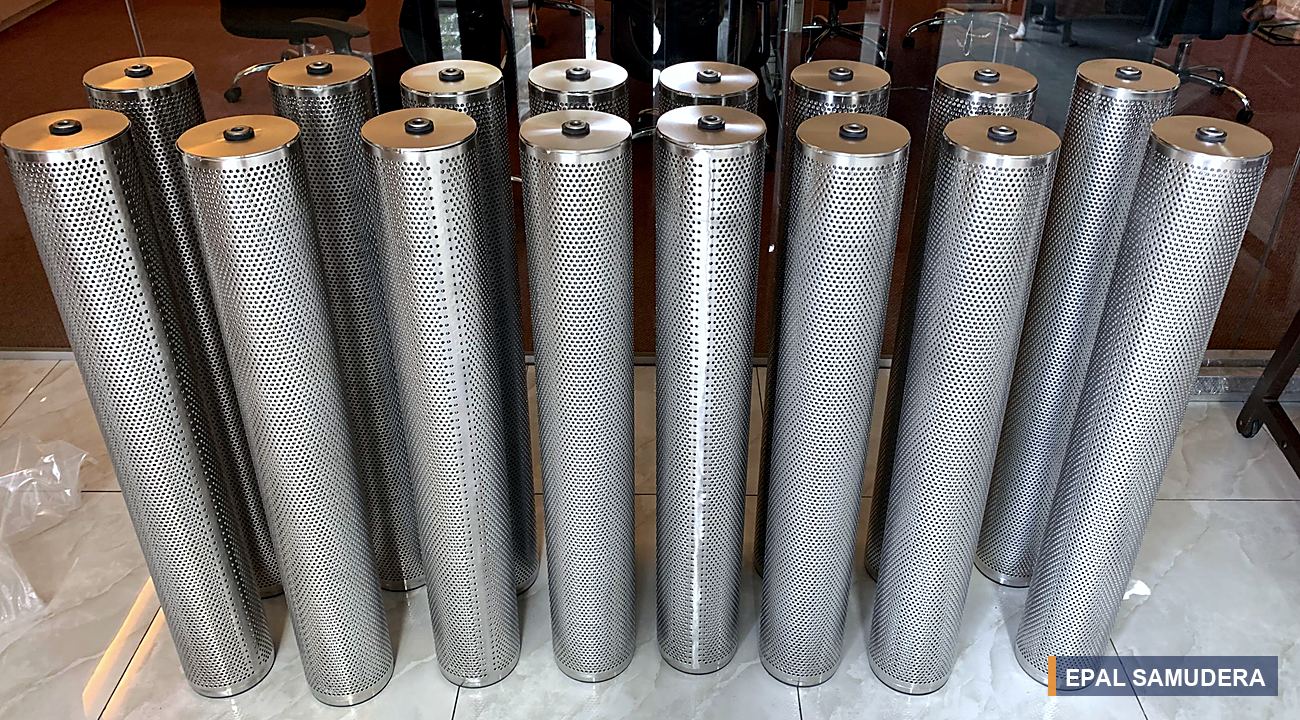

From Our Workshop
Related Products
Stainless Steel Pleated Filters
All-metal pleated elements with a large filter area in a compact size, for liquid and gas service.
View Product →
Strainer Baskets & Filter Elements
Replacement baskets, screens and elements for any make of strainer, plus remeshing and repair.
View Product →
Wedge Wire Screens & Vessel Internals
Profile-wire screens, support grids, laterals and tee screens with slots from 0.10 mm, for vessels and reactors.
View Product →Send Us Your Datasheet or Line List
Tell us the service, size, rating and materials. We reply with a technical proposal, drawing and lead time, usually within two working days.
Call +607 598 5796 / 5797 · [email protected]
